360° Automatic Single Arm Jet Wash
Description

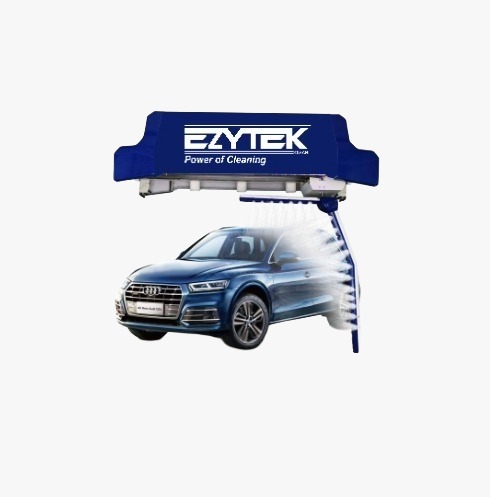

The Automatic Single Arm Jet Wash Plant by Ezytek Clean is a touchless vehicle cleaning system designed for efficiency and safety. It uses high-pressure water jets and automated cycles to clean vehicles without physical brushes, minimizing the risk of paint scratches.
Core Features
- 360° Rotating Arm: A single robotic arm rotates around the vehicle, providing full liquid and high-pressure water spray coverage from all sides.
- Touchless Technology: Employs high-pressure fixed and oscillating nozzles (delivering up to 150 bar) to displace dirt and grime without surface contact.
- Automated Cycle: Features a complete “Auto Jet-Foam-Wax” cycle that automates pre-wash, foam application, rinsing, and waxing.
- Smart Sensing: Equipped with ultrasonic sensors and PLC (Programmable Logic Controller) with an HMI touch panel to automatically detect vehicle length and position for precise cleaning.
- Underbody Wash: Includes a robotic undercarriage wash system with oscillating nozzles to clean the chassis and wheels without manual lifting
Technical Specification
| Model | EZY-360Arm |
| Power Supply | 380V/50Hz/3Ph 40Kw |
| Water Pressure | 60-100Bar |
| Water Pump Motor Power(Kw) | 380V/15Kw |
| Car Wash Time(Min) | 2-5 Minutes/Car |
| Under Chassis Wash System | 304 Stainless Steel |
| Water Consumption | 80-150L/Car |
| Guarantee | 3 Years Warranty |
| Air Fan Motor Power (Kw) | 5.5Kw X 4Pcs |
| Rail Length (mm) | 7000mm |
| Chemical Mixing System | Metering pump automatic proportioning |
| Shipping Weight / Volume | 1900kg/10m3 |
Gallery
