Description

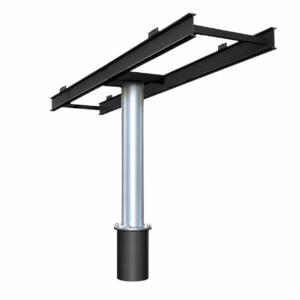

A single post chassis lift uses one heavy-duty vertical coloumn to elevate a vehicle off the ground, leaving the remaining sides completely unobstructed. Ideal for compact garages, mobile mechanics, and car wash bays, these hydraulic lifts typically support 2.5 to 4 metric tons and provide easy access for underbody cleaning and maintenance.
Key Features and Mechanics
1. Minimal Footprint: Because they rely on one central column rather than symmetrical anchoring on both sides, they maximize limited floor space and allow mechanics to easily move around the vehicle.
2. Electro-Hydraulic Power: These lifts usually feature a single-phase electric motor connected to a hydraulic pump. The hydraulic cylinder pushes fluid to raise the lifting arms or platform carriage along the post.
3. Lifting Capacities: Depending on the specific model, typical weight limits range from 3,500 lbs to 8,000 lbs (about 1.5 to 3.5 metric tons).
4. Portability: Many single-post lifts are designed to roll easily on a level concrete surface, allowing users to relocate them inside or outside a workshop as needed.
5. Clearance: When used for detailing or underbody work (like rustproofing), the lift raises the vehicle high enough to allow the operator to stand or sit underneath it, often reaching heights around 1,800 mm (approx. 70 inches).
Applications
1. Commercial Cleaning: Often called a chassis washing lift, it is widely used in auto detailing and car wash bays for complete access to the undercarriage.
2. Light Servicing: Perfect for brake jobs, tire rotations, and minor repairs.
3. Vehicle Storage: Used by car enthusiasts to stack and store vehicles in garages with limited space.
